HSS - ASTM A500 Square (HA) - HA178x178x13

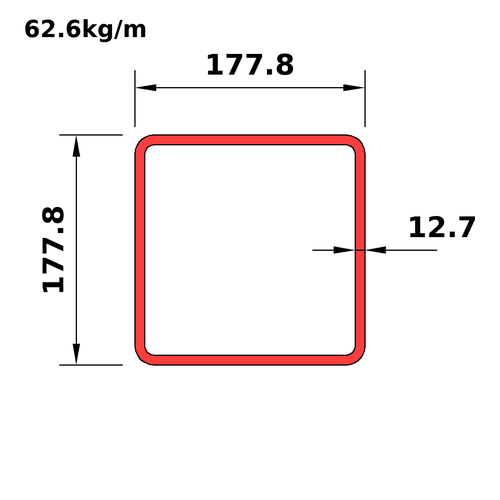

Square Hollow Structural Sections to ASTM A500 combine the torsional stiffness of a closed tube with equal bending resistance about both axes, making them a go-to choice for columns, truss members, and any application where loads may come from more than one direction. Their flat, symmetrical faces simplify connection design and make them a favourite for exposed architectural steelwork as well as everyday structural framing. This family covers the full ASTM A500 square range as free CAD blocks, with outside dimensions, wall thickness and corner radii drawn from CISC 12.

HA178x178x13
Select ZIP download

Select DWG download

Nearby Sections

Previous
HA178x178x16
This section
HA178x178x13
Next
HA178x178x9.5

Dimensions

PropertyValue
Ds_iHA7x7x0.500
D177.8
B177.8
T12.7
Tdes11.43
RI11.43
RO22.86
Mass62.6
Wt_i42.1
A_Th7270

Full sortable table: Dimensions table for this category

Section Properties

PropertyValue
Ds_iHA7x7x0.500
Mass62.6
Wt_i42.1
Prp
Avl
Shp12
Use2
BT11.56
DT11.56
Dn_m178
A_Th7270
Ix32.7
Sx368
Rx67.1
Zx446
Iy32.7
Sy368
Ry67.1
Zy446
J54100
Crt3020
C627
SA0.672
Dn_i7

Full sortable table: Properties table for this category
