HSS - ASTM A500 Square (HA) - HA178x178x6.4

Square Hollow Structural Sections to ASTM A500 combine the torsional stiffness of a closed tube with equal bending resistance about both axes, making them a go-to choice for columns, truss members, and any application where loads may come from more than one direction. Their flat, symmetrical faces simplify connection design and make them a favourite for exposed architectural steelwork as well as everyday structural framing. This family covers the full ASTM A500 square range as free CAD blocks, with outside dimensions, wall thickness and corner radii drawn from CISC 12.

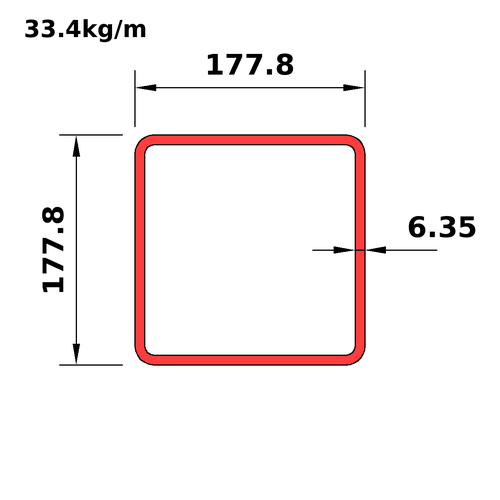

HA178x178x6.4
Select ZIP download

Select DWG download

Nearby Sections

Previous
HA178x178x7.9
This section
HA178x178x6.4
Next
HA178x178x4.8

Dimensions

PropertyValue
Ds_iHA7x7x0.250
D177.8
B177.8
T6.35
Tdes5.72
RI5.72
RO11.44
Mass33.4
Wt_i22.4
A_Th3850

Full sortable table: Dimensions table for this category

Section Properties

PropertyValue
Ds_iHA7x7x0.250
Mass33.4
Wt_i22.4
Prp
Avl
Shp12
Use2
BT27.08
DT27.08
Dn_m178
A_Th3850
Ix18.8
Sx212
Rx69.9
Zx247
Iy18.8
Sy212
Ry69.9
Zy247
J29700
Crt1770
C338
SA0.692
Dn_i7
