HSS - ASTM A500 Square (HA) - HA178x178x7.9

Square Hollow Structural Sections to ASTM A500 combine the torsional stiffness of a closed tube with equal bending resistance about both axes, making them a go-to choice for columns, truss members, and any application where loads may come from more than one direction. Their flat, symmetrical faces simplify connection design and make them a favourite for exposed architectural steelwork as well as everyday structural framing. This family covers the full ASTM A500 square range as free CAD blocks, with outside dimensions, wall thickness and corner radii drawn from CISC 12.

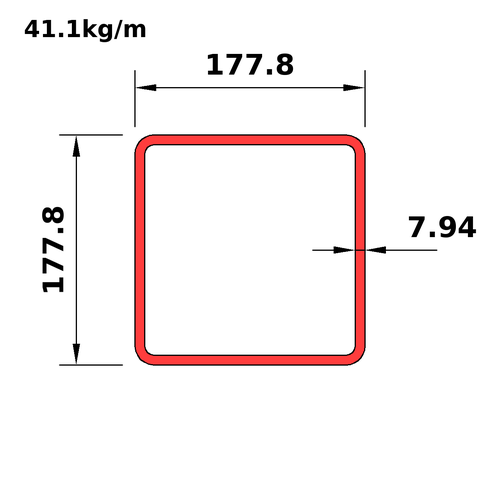

HA178x178x7.9
Select ZIP download

Select DWG download

Nearby Sections

Previous
HA178x178x9.5
This section
HA178x178x7.9
Next
HA178x178x6.4

Dimensions

PropertyValue
Ds_iHA7x7x0.313
D177.8
B177.8
T7.94
Tdes7.15
RI7.15
RO14.3
Mass41.1
Wt_i27.6
A_Th4750

Full sortable table: Dimensions table for this category

Section Properties

PropertyValue
Ds_iHA7x7x0.313
Mass41.1
Wt_i27.6
Prp
Avl
Shp12
Use2
BT20.87
DT20.87
Dn_m178
A_Th4750
Ix22.7
Sx256
Rx69.2
Zx301
Iy22.7
Sy256
Ry69.2
Zy301
J36300
Crt2130
C415
SA0.687
Dn_i7

Full sortable table: Properties table for this category
