HSS - ASTM A500 Rectangular (HA) - HA254x152x13

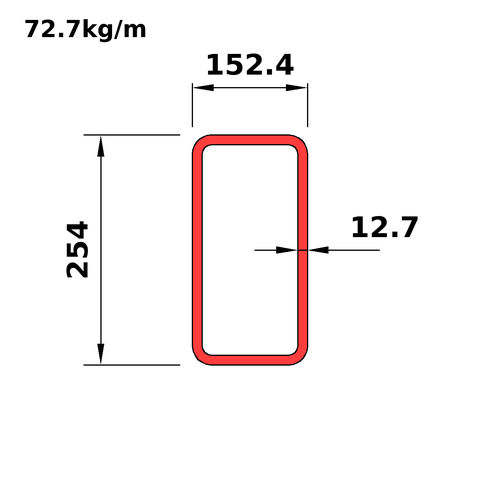

Rectangular Hollow Structural Sections to ASTM A500 are closed, cold-formed tube profiles used wherever a torsionally stiff, visually clean member is needed — exposed columns and canopy framing, truss chords, handrail and guard posts, and equipment supports. The closed section resists twisting far better than an open shape of similar weight, and the flat faces make welding gusset plates and connections straightforward. This family covers the full ASTM A500 rectangular range, from small architectural tube sizes up to heavy structural sections, each available as a free CAD block with complete dimensional and property data drawn from CISC 12.

HA254x152x13
Select ZIP download

Select DWG download

Nearby Sections

Previous
HA254x152x16
This section
HA254x152x13
Next
HA254x152x9.5

Dimensions

PropertyValue
Ds_iHA10x6x0.500
D254
B152.4
T12.7
Tdes11.43
RI11.43
RO22.86
Mass72.7
Wt_i48.9
A_Th8430

Full sortable table: Dimensions table for this category

Section Properties

PropertyValue
Ds_iHA10x6x0.500
Mass72.7
Wt_i48.9
Prp
Avl
Shp13
Use2
BT9.33
DT18.22
Dn_m254
A_Th8430
Ix69.6
Sx548
Rx90.8
Zx686
Iy31.2
Sy410
Ry60.8
Zy480
J71400
Crt4760
C776
SA0.774
Dn_i10

Full sortable table: Properties table for this category
