HSS - ASTM A500 Rectangular (HA) - HA254x152x16

Rectangular Hollow Structural Sections to ASTM A500 are closed, cold-formed tube profiles used wherever a torsionally stiff, visually clean member is needed — exposed columns and canopy framing, truss chords, handrail and guard posts, and equipment supports. The closed section resists twisting far better than an open shape of similar weight, and the flat faces make welding gusset plates and connections straightforward. This family covers the full ASTM A500 rectangular range, from small architectural tube sizes up to heavy structural sections, each available as a free CAD block with complete dimensional and property data drawn from CISC 12.

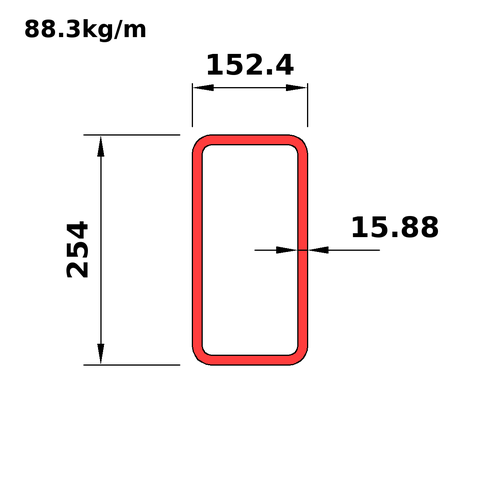

HA254x152x16
Select ZIP download

Select DWG download

Nearby Sections

Previous
HA254x203x6.4
This section
HA254x152x16
Next
HA254x152x13

Dimensions

PropertyValue
Ds_iHA10x6x0.625
D254
B152.4
T15.88
Tdes14.29
RI14.29
RO28.58
Mass88.3
Wt_i59.3
A_Th10300

Full sortable table: Dimensions table for this category

Section Properties

PropertyValue
Ds_iHA10x6x0.625
Mass88.3
Wt_i59.3
Prp*
Avl
Shp13
Use2
BT6.66
DT13.77
Dn_m254
A_Th10300
Ix81.8
Sx644
Rx89.2
Zx820
Iy36.4
Sy478
Ry59.6
Zy572
J85100
Crt5630
C935
SA0.764
Dn_i10

Full sortable table: Properties table for this category
