HSS - ASTM A500 Square (HA) - HA356x356x13

Square Hollow Structural Sections to ASTM A500 combine the torsional stiffness of a closed tube with equal bending resistance about both axes, making them a go-to choice for columns, truss members, and any application where loads may come from more than one direction. Their flat, symmetrical faces simplify connection design and make them a favourite for exposed architectural steelwork as well as everyday structural framing. This family covers the full ASTM A500 square range as free CAD blocks, with outside dimensions, wall thickness and corner radii drawn from CISC 12.

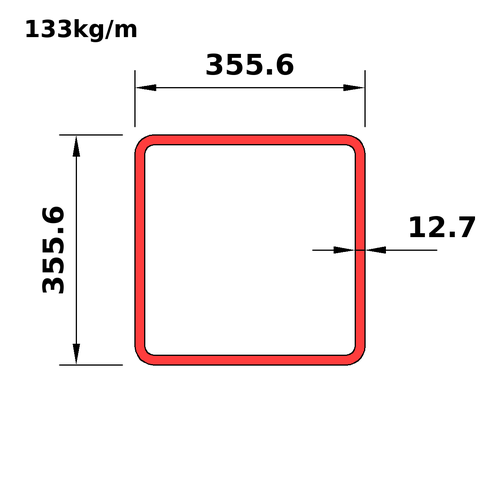

HA356x356x13
Select ZIP download

Select DWG download

Nearby Sections

Previous
HA356x356x16
This section
HA356x356x13
Next
HA356x356x9.5

Dimensions

PropertyValue
Ds_iHA14x14x0.500
D355.6
B355.6
T12.7
Tdes11.43
RI11.43
RO22.86
Mass133
Wt_i89.7
A_Th15400

Full sortable table: Dimensions table for this category

Section Properties

PropertyValue
Ds_iHA14x14x0.500
Mass133
Wt_i89.7
Prp
Avl+
Shp12
Use2
BT27.11
DT27.11
Dn_m356
A_Th15400
Ix301
Sx1690
Rx140
Zx1970
Iy301
Sy1690
Ry140
Zy1970
J474000
Crt7080
C2700
SA1.38
Dn_i14
