HSS - ASTM A500 Square (HA) - HA356x356x9.5

Square Hollow Structural Sections to ASTM A500 combine the torsional stiffness of a closed tube with equal bending resistance about both axes, making them a go-to choice for columns, truss members, and any application where loads may come from more than one direction. Their flat, symmetrical faces simplify connection design and make them a favourite for exposed architectural steelwork as well as everyday structural framing. This family covers the full ASTM A500 square range as free CAD blocks, with outside dimensions, wall thickness and corner radii drawn from CISC 12.

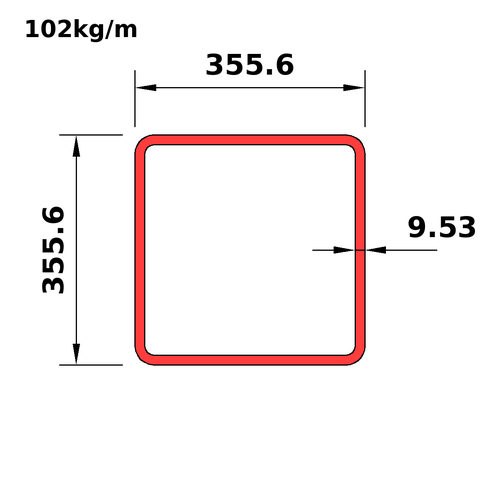

HA356x356x9.5
Select ZIP download

Select DWG download

Nearby Sections

Previous
HA356x356x13
This section
HA356x356x9.5
Next
HA356x356x7.9

Dimensions

PropertyValue
Ds_iHA14x14x0.375
D355.6
B355.6
T9.53
Tdes8.58
RI8.58
RO17.16
Mass102
Wt_i68.3
A_Th11700

Full sortable table: Dimensions table for this category

Section Properties

PropertyValue
Ds_iHA14x14x0.375
Mass102
Wt_i68.3
Prp
Avl+
Shp12
Use2
BT37.45
DT37.45
Dn_m356
A_Th11700
Ix233
Sx1310
Rx141
Zx1520
Iy233
Sy1310
Ry141
Zy1520
J363000
Crt5510
C2060
SA1.39
Dn_i14

Full sortable table: Properties table for this category
