HSS - ASTM A500 Square (HA) - HA76x76x6.4

Square Hollow Structural Sections to ASTM A500 combine the torsional stiffness of a closed tube with equal bending resistance about both axes, making them a go-to choice for columns, truss members, and any application where loads may come from more than one direction. Their flat, symmetrical faces simplify connection design and make them a favourite for exposed architectural steelwork as well as everyday structural framing. This family covers the full ASTM A500 square range as free CAD blocks, with outside dimensions, wall thickness and corner radii drawn from CISC 12.

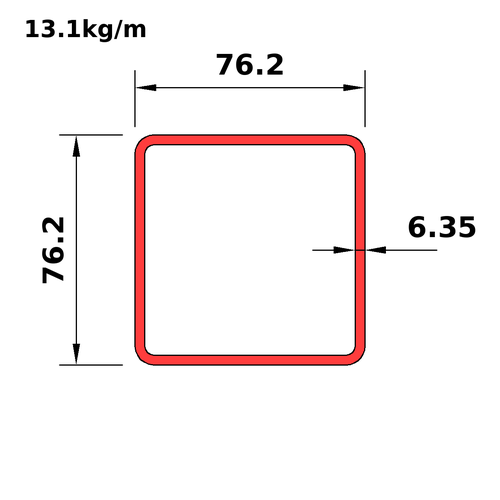

HA76x76x6.4
Select ZIP download

Select DWG download

Nearby Sections

Previous
HA76x76x7.9
This section
HA76x76x6.4
Next
HA76x76x4.8

Dimensions

PropertyValue
Ds_iHA3x3x0.250
D76.2
B76.2
T6.35
Tdes5.72
RI5.72
RO11.44
Mass13.1
Wt_i8.81
A_Th1530

Full sortable table: Dimensions table for this category

Section Properties

PropertyValue
Ds_iHA3x3x0.250
Mass13.1
Wt_i8.81
Prp
Avl
Shp12
Use2
BT9.32
DT9.32
Dn_m76
A_Th1530
Ix1.23
Sx32.2
Rx28.4
Zx39.6
Iy1.23
Sy32.2
Ry28.4
Zy39.6
J2060
Crt610
C56.1
SA0.285
Dn_i3

Full sortable table: Properties table for this category
