HSS - ASTM A500 Square (HA) - HA76x76x7.9

Square Hollow Structural Sections to ASTM A500 combine the torsional stiffness of a closed tube with equal bending resistance about both axes, making them a go-to choice for columns, truss members, and any application where loads may come from more than one direction. Their flat, symmetrical faces simplify connection design and make them a favourite for exposed architectural steelwork as well as everyday structural framing. This family covers the full ASTM A500 square range as free CAD blocks, with outside dimensions, wall thickness and corner radii drawn from CISC 12.

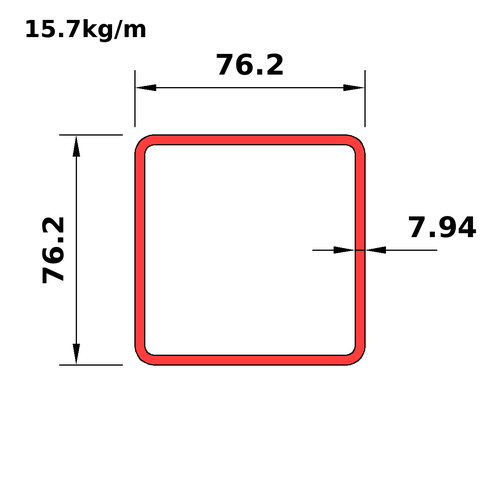

HA76x76x7.9
Select ZIP download

Select DWG download

Nearby Sections

Previous
HA76x76x9.5
This section
HA76x76x7.9
Next
HA76x76x6.4

Dimensions

PropertyValue
Ds_iHA3x3x0.313
D76.2
B76.2
T7.94
Tdes7.15
RI7.15
RO14.3
Mass15.7
Wt_i10.6
A_Th1840

Full sortable table: Dimensions table for this category

Section Properties

PropertyValue
Ds_iHA3x3x0.313
Mass15.7
Wt_i10.6
Prp
Avl
Shp12
Use2
BT6.66
DT6.66
Dn_m76
A_Th1840
Ix1.41
Sx37
Rx27.6
Zx46.5
Iy1.41
Sy37
Ry27.6
Zy46.5
J2420
Crt681
C66.8
SA0.28
Dn_i3

Full sortable table: Properties table for this category
