HSS - CSA G40 Rectangular (HS) - HS102x76x4.8

Rectangular Hollow Structural Sections to CSA G40.21 are the Canadian-grade counterpart to ASTM A500 rectangular HSS, and are widely specified across Canada for columns, truss chords, canopy and mezzanine framing, and any application needing a torsionally stiff member with flat faces for easy connections. The rectangular profile is efficient where bending governs in one direction more than the other, letting the deeper dimension do the work. Every section in this CSA G40 rectangular family is available as a free CAD block, with full dimensional and property data from CISC 12.

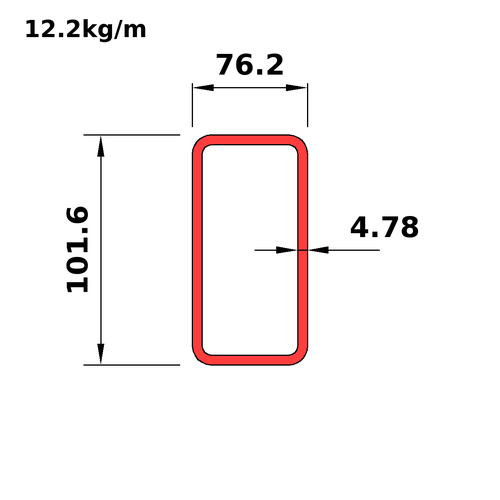

HS102x76x4.8
Select ZIP download

Select DWG download

Nearby Sections

Previous
HS102x76x6.4
This section
HS102x76x4.8
Next
HS102x76x3.2

Dimensions

PropertyValue
Ds_iHS4x3x0.188
D101.6
B76.2
T4.78
Tdes4.78
RI4.78
RO9.56
Mass12.2
Wt_i8.17
A_Th1550

Full sortable table: Dimensions table for this category

Section Properties

PropertyValue
Ds_iHS4x3x0.188
Mass12.2
Wt_i8.17
Prp
Avl
Shp10
Use2
BT11.94
DT17.26
Dn_m102
A_Th1550
Ix2.18
Sx43
Rx37.5
Zx52.6
Iy1.39
Sy36.6
Ry30
Zy43.1
J2780
Crt789
C65.7
SA0.339
Dn_i4

Full sortable table: Properties table for this category
