HSS - CSA G40 Rectangular (HS) - HS102x76x6.4

Rectangular Hollow Structural Sections to CSA G40.21 are the Canadian-grade counterpart to ASTM A500 rectangular HSS, and are widely specified across Canada for columns, truss chords, canopy and mezzanine framing, and any application needing a torsionally stiff member with flat faces for easy connections. The rectangular profile is efficient where bending governs in one direction more than the other, letting the deeper dimension do the work. Every section in this CSA G40 rectangular family is available as a free CAD block, with full dimensional and property data from CISC 12.

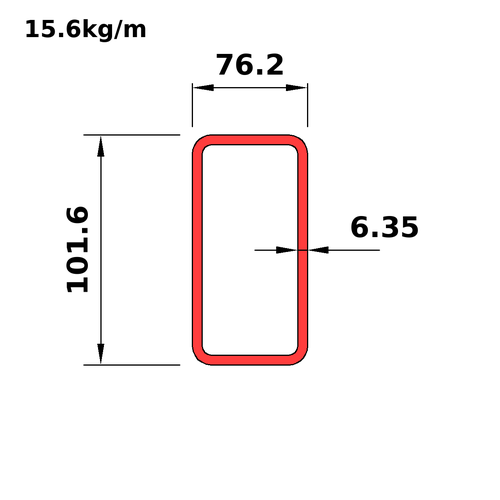

HS102x76x6.4
Select ZIP download

Select DWG download

Nearby Sections

Previous
HS102x76x7.9
This section
HS102x76x6.4
Next
HS102x76x4.8

Dimensions

PropertyValue
Ds_iHS4x3x0.250
D101.6
B76.2
T6.35
Tdes6.35
RI6.35
RO12.7
Mass15.6
Wt_i10.5
A_Th1990

Full sortable table: Dimensions table for this category

Section Properties

PropertyValue
Ds_iHS4x3x0.250
Mass15.6
Wt_i10.5
Prp
Avl
Shp10
Use2
BT8
DT12
Dn_m102
A_Th1990
Ix2.69
Sx52.9
Rx36.7
Zx66
Iy1.71
Sy44.8
Ry29.3
Zy54
J3500
Crt968
C83.5
SA0.334
Dn_i4

Full sortable table: Properties table for this category
