HSS - CSA G40 Rectangular (HS) - HS127x102x3.2

Rectangular Hollow Structural Sections to CSA G40.21 are the Canadian-grade counterpart to ASTM A500 rectangular HSS, and are widely specified across Canada for columns, truss chords, canopy and mezzanine framing, and any application needing a torsionally stiff member with flat faces for easy connections. The rectangular profile is efficient where bending governs in one direction more than the other, letting the deeper dimension do the work. Every section in this CSA G40 rectangular family is available as a free CAD block, with full dimensional and property data from CISC 12.

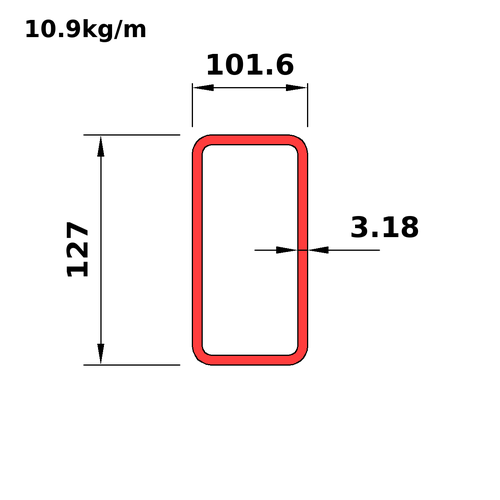

HS127x102x3.2
Select ZIP download

Select DWG download

Nearby Sections

Previous
HS127x102x4.8
This section
HS127x102x3.2
Next
HS127x76x13

Dimensions

PropertyValue
Ds_iHS5x4x0.125
D127
B101.6
T3.18
Tdes3.18
RI3.18
RO6.36
Mass10.9
Wt_i7.31
A_Th1390

Full sortable table: Dimensions table for this category

Section Properties

PropertyValue
Ds_iHS5x4x0.125
Mass10.9
Wt_i7.31
Prp
Avl
Shp10
Use2
BT27.95
DT35.94
Dn_m127
A_Th1390
Ix3.3
Sx52
Rx48.8
Zx61.5
Iy2.35
Sy46.2
Ry41.1
Zy52.9
J4320
Crt727
C77.4
SA0.446
Dn_i5

Full sortable table: Properties table for this category
