HSS - CSA G40 Rectangular (HS) - HS127x76x13

Rectangular Hollow Structural Sections to CSA G40.21 are the Canadian-grade counterpart to ASTM A500 rectangular HSS, and are widely specified across Canada for columns, truss chords, canopy and mezzanine framing, and any application needing a torsionally stiff member with flat faces for easy connections. The rectangular profile is efficient where bending governs in one direction more than the other, letting the deeper dimension do the work. Every section in this CSA G40 rectangular family is available as a free CAD block, with full dimensional and property data from CISC 12.

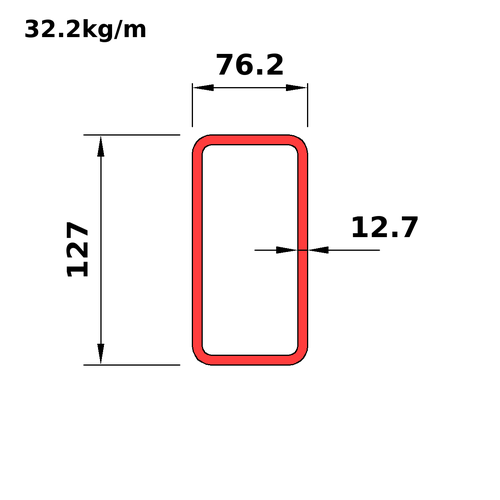

HS127x76x13
Select ZIP download

Select DWG download

Nearby Sections

Previous
HS127x102x3.2
This section
HS127x76x13
Next
HS127x76x9.5

Dimensions

PropertyValue
Ds_iHS5x3x0.500
D127
B76.2
T12.7
Tdes12.7
RI12.7
RO25.4
Mass32.2
Wt_i21.6
A_Th4100

Full sortable table: Dimensions table for this category

Section Properties

PropertyValue
Ds_iHS5x3x0.500
Mass32.2
Wt_i21.6
Prp*
Avl+
Shp10
Use2
BT2
DT6
Dn_m127
A_Th4100
Ix7.02
Sx111
Rx41.4
Zx151
Iy3.05
Sy80
Ry27.3
Zy104
J7590
Crt1940
C176
SA0.363
Dn_i5

Full sortable table: Properties table for this category
