HSS - CSA G40 Square (HS) - HS127x127x3.2

Square Hollow Structural Sections to CSA G40.21 are the Canadian-grade square HSS family — a closed, symmetrical profile that resists bending equally about both axes and offers strong torsional performance for columns, bracing and truss members. Their flat faces make them easy to weld and bolt, and their clean lines are a popular choice for exposed architectural steel as well as everyday framing. Every section in this CSA G40 square family is available as a free CAD block, with outside dimensions, wall thickness and corner radii drawn from CISC 12.

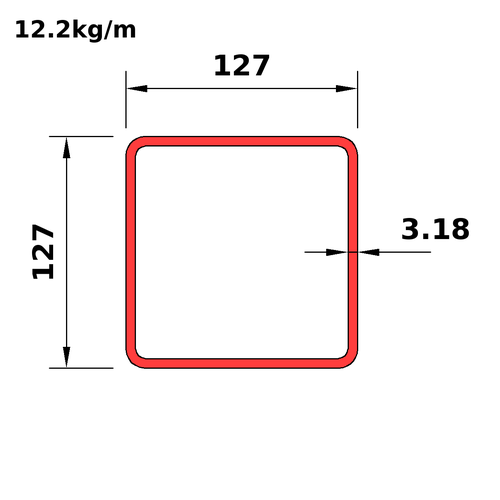

HS127x127x3.2
Select ZIP download

Select DWG download

Nearby Sections

Previous
HS127x127x4.8
This section
HS127x127x3.2
Next
HS102x102x13

Dimensions

PropertyValue
Ds_iHS5x5x0.125
D127
B127
T3.18
Tdes3.18
RI3.18
RO6.36
Mass12.2
Wt_i8.16
A_Th1550

Full sortable table: Dimensions table for this category

Section Properties

PropertyValue
Ds_iHS5x5x0.125
Mass12.2
Wt_i8.16
Prp
Avl
Shp9
Use2
BT35.94
DT35.94
Dn_m127
A_Th1550
Ix3.92
Sx61.8
Rx50.3
Zx71.5
Iy3.92
Sy61.8
Ry50.3
Zy71.5
J6120
Crt727
C97.4
SA0.497
Dn_i5

Full sortable table: Properties table for this category
