HSS - CSA G40 Square (HS) - HS127x127x4.8

Square Hollow Structural Sections to CSA G40.21 are the Canadian-grade square HSS family — a closed, symmetrical profile that resists bending equally about both axes and offers strong torsional performance for columns, bracing and truss members. Their flat faces make them easy to weld and bolt, and their clean lines are a popular choice for exposed architectural steel as well as everyday framing. Every section in this CSA G40 square family is available as a free CAD block, with outside dimensions, wall thickness and corner radii drawn from CISC 12.

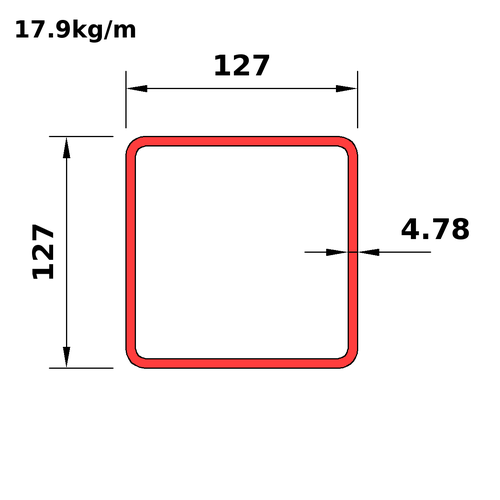

HS127x127x4.8
Select ZIP download

Select DWG download

Nearby Sections

Previous
HS127x127x6.4
This section
HS127x127x4.8
Next
HS127x127x3.2

Dimensions

PropertyValue
Ds_iHS5x5x0.188
D127
B127
T4.78
Tdes4.78
RI4.78
RO9.56
Mass17.9
Wt_i12
A_Th2280

Full sortable table: Dimensions table for this category

Section Properties

PropertyValue
Ds_iHS5x5x0.188
Mass17.9
Wt_i12
Prp
Avl
Shp9
Use2
BT22.57
DT22.57
Dn_m127
A_Th2280
Ix5.6
Sx88.1
Rx49.6
Zx103
Iy5.6
Sy88.1
Ry49.6
Zy103
J8900
Crt1030
C142
SA0.492
Dn_i5
