HSS - CSA G40 Rectangular (HS) - HS152x102x13

Rectangular Hollow Structural Sections to CSA G40.21 are the Canadian-grade counterpart to ASTM A500 rectangular HSS, and are widely specified across Canada for columns, truss chords, canopy and mezzanine framing, and any application needing a torsionally stiff member with flat faces for easy connections. The rectangular profile is efficient where bending governs in one direction more than the other, letting the deeper dimension do the work. Every section in this CSA G40 rectangular family is available as a free CAD block, with full dimensional and property data from CISC 12.

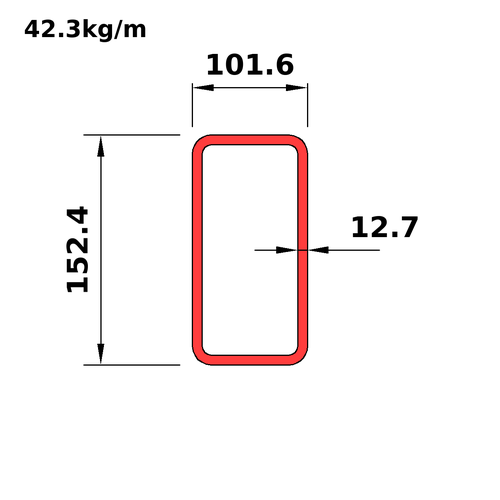

HS152x102x13
Select ZIP download

Select DWG download

Nearby Sections

Previous
HS178x127x4.8
This section
HS152x102x13
Next
HS152x102x9.5

Dimensions

PropertyValue
Ds_iHS6x4x0.500
D152.4
B101.6
T12.7
Tdes12.7
RI12.7
RO25.4
Mass42.3
Wt_i28.4
A_Th5390

Full sortable table: Dimensions table for this category

Section Properties

PropertyValue
Ds_iHS6x4x0.500
Mass42.3
Wt_i28.4
Prp*
Avl+
Shp10
Use2
BT4
DT8
Dn_m152
A_Th5390
Ix14.7
Sx193
Rx52.2
Zx252
Iy7.67
Sy151
Ry37.7
Zy189
J17500
Crt2580
C308
SA0.464
Dn_i6

Full sortable table: Properties table for this category
