HSS - CSA G40 Rectangular (HS) - HS152x102x9.5

Rectangular Hollow Structural Sections to CSA G40.21 are the Canadian-grade counterpart to ASTM A500 rectangular HSS, and are widely specified across Canada for columns, truss chords, canopy and mezzanine framing, and any application needing a torsionally stiff member with flat faces for easy connections. The rectangular profile is efficient where bending governs in one direction more than the other, letting the deeper dimension do the work. Every section in this CSA G40 rectangular family is available as a free CAD block, with full dimensional and property data from CISC 12.

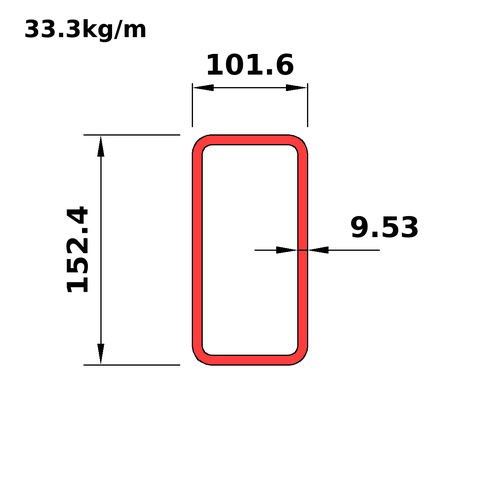

HS152x102x9.5
Select ZIP download

Select DWG download

Nearby Sections

Previous
HS152x102x13
This section
HS152x102x9.5
Next
HS152x102x7.9

Dimensions

PropertyValue
Ds_iHS6x4x0.375
D152.4
B101.6
T9.53
Tdes9.53
RI9.53
RO19.06
Mass33.3
Wt_i22.4
A_Th4240

Full sortable table: Dimensions table for this category

Section Properties

PropertyValue
Ds_iHS6x4x0.375
Mass33.3
Wt_i22.4
Prp
Avl
Shp10
Use2
BT6.66
DT11.99
Dn_m152
A_Th4240
Ix12.4
Sx162
Rx54
Zx206
Iy6.51
Sy128
Ry39.2
Zy155
J14400
Crt2180
C247
SA0.475
Dn_i6

Full sortable table: Properties table for this category
