HSS - CSA G40 Square (HS) - HS152x152x4.8

Square Hollow Structural Sections to CSA G40.21 are the Canadian-grade square HSS family — a closed, symmetrical profile that resists bending equally about both axes and offers strong torsional performance for columns, bracing and truss members. Their flat faces make them easy to weld and bolt, and their clean lines are a popular choice for exposed architectural steel as well as everyday framing. Every section in this CSA G40 square family is available as a free CAD block, with outside dimensions, wall thickness and corner radii drawn from CISC 12.

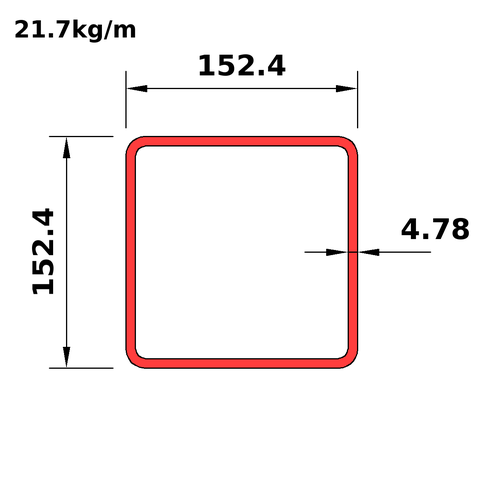

HS152x152x4.8
Select ZIP download

Select DWG download

Nearby Sections

Previous
HS152x152x6.4
This section
HS152x152x4.8
Next
HS127x127x13

Dimensions

PropertyValue
Ds_iHS6x6x0.188
D152.4
B152.4
T4.78
Tdes4.78
RI4.78
RO9.56
Mass21.7
Wt_i14.6
A_Th2760

Full sortable table: Dimensions table for this category

Section Properties

PropertyValue
Ds_iHS6x6x0.188
Mass21.7
Wt_i14.6
Prp
Avl
Shp9
Use2
BT27.88
DT27.88
Dn_m152
A_Th2760
Ix9.93
Sx130
Rx59.9
Zx152
Iy9.93
Sy130
Ry59.9
Zy152
J15600
Crt1270
C208
SA0.593
Dn_i6
