HSS - CSA G40 Square (HS) - HS152x152x6.4

Square Hollow Structural Sections to CSA G40.21 are the Canadian-grade square HSS family — a closed, symmetrical profile that resists bending equally about both axes and offers strong torsional performance for columns, bracing and truss members. Their flat faces make them easy to weld and bolt, and their clean lines are a popular choice for exposed architectural steel as well as everyday framing. Every section in this CSA G40 square family is available as a free CAD block, with outside dimensions, wall thickness and corner radii drawn from CISC 12.

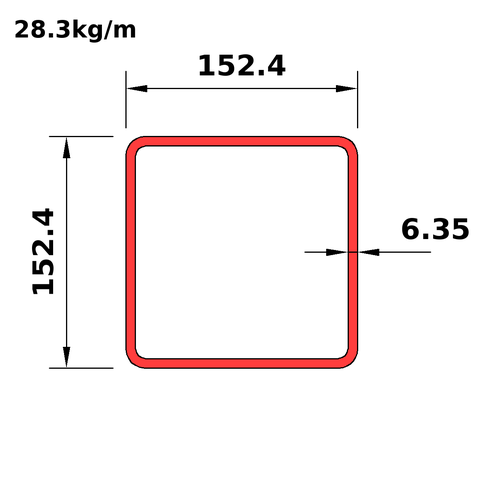

HS152x152x6.4
Select ZIP download

Select DWG download

Nearby Sections

Previous
HS152x152x7.9
This section
HS152x152x6.4
Next
HS152x152x4.8

Dimensions

PropertyValue
Ds_iHS6x6x0.250
D152.4
B152.4
T6.35
Tdes6.35
RI6.35
RO12.7
Mass28.3
Wt_i19
A_Th3610

Full sortable table: Dimensions table for this category

Section Properties

PropertyValue
Ds_iHS6x6x0.250
Mass28.3
Wt_i19
Prp
Avl
Shp9
Use2
BT20
DT20
Dn_m152
A_Th3610
Ix12.6
Sx166
Rx59.2
Zx196
Iy12.6
Sy166
Ry59.2
Zy196
J20200
Crt1610
C270
SA0.588
Dn_i6
