HSS - CSA G40 Square (HS) - HS152x152x7.9

Square Hollow Structural Sections to CSA G40.21 are the Canadian-grade square HSS family — a closed, symmetrical profile that resists bending equally about both axes and offers strong torsional performance for columns, bracing and truss members. Their flat faces make them easy to weld and bolt, and their clean lines are a popular choice for exposed architectural steel as well as everyday framing. Every section in this CSA G40 square family is available as a free CAD block, with outside dimensions, wall thickness and corner radii drawn from CISC 12.

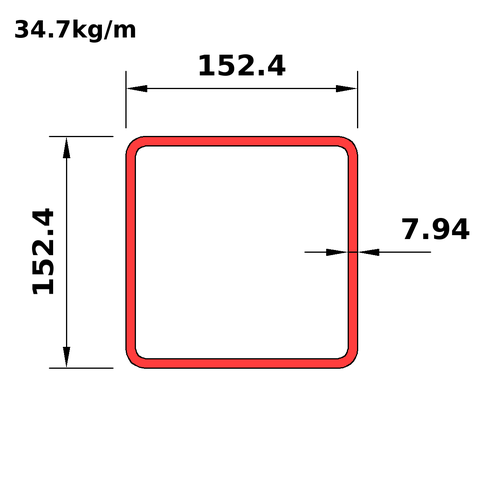

HS152x152x7.9
Select ZIP download

Select DWG download

Nearby Sections

Previous
HS152x152x9.5
This section
HS152x152x7.9
Next
HS152x152x6.4

Dimensions

PropertyValue
Ds_iHS6x6x0.313
D152.4
B152.4
T7.94
Tdes7.94
RI7.94
RO15.88
Mass34.7
Wt_i23.4
A_Th4430

Full sortable table: Dimensions table for this category

Section Properties

PropertyValue
Ds_iHS6x6x0.313
Mass34.7
Wt_i23.4
Prp
Avl
Shp9
Use2
BT15.19
DT15.19
Dn_m152
A_Th4430
Ix15.1
Sx198
Rx58.4
Zx237
Iy15.1
Sy198
Ry58.4
Zy237
J24500
Crt1920
C329
SA0.582
Dn_i6
