HSS - CSA G40 Square (HS) - HS178x178x9.5

Square Hollow Structural Sections to CSA G40.21 are the Canadian-grade square HSS family — a closed, symmetrical profile that resists bending equally about both axes and offers strong torsional performance for columns, bracing and truss members. Their flat faces make them easy to weld and bolt, and their clean lines are a popular choice for exposed architectural steel as well as everyday framing. Every section in this CSA G40 square family is available as a free CAD block, with outside dimensions, wall thickness and corner radii drawn from CISC 12.

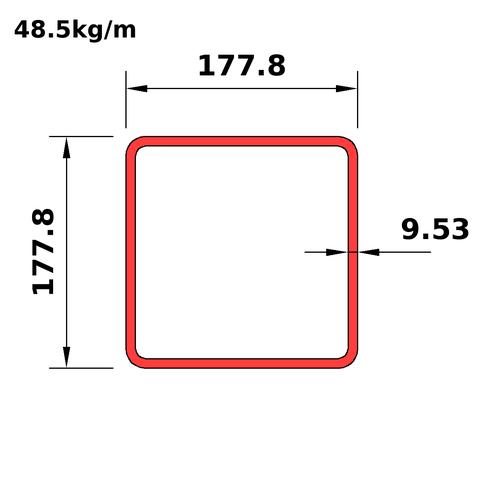

HS178x178x9.5
Select ZIP download

Select DWG download

Nearby Sections

Previous
HS178x178x13
This section
HS178x178x9.5
Next
HS178x178x7.9

Dimensions

PropertyValue
Ds_iHS7x7x0.375
D177.8
B177.8
T9.53
Tdes9.53
RI9.53
RO19.06
Mass48.5
Wt_i32.6
A_Th6180

Full sortable table: Dimensions table for this category

Section Properties

PropertyValue
Ds_iHS7x7x0.375
Mass48.5
Wt_i32.6
Prp
Avl
Shp9
Use2
BT14.66
DT14.66
Dn_m178
A_Th6180
Ix28.6
Sx322
Rx68
Zx385
Iy28.6
Sy322
Ry68
Zy385
J46500
Crt2660
C536
SA0.678
Dn_i7

Full sortable table: Properties table for this category
