HSS - CSA G40 Square (HS) - HS178x178x13

Square Hollow Structural Sections to CSA G40.21 are the Canadian-grade square HSS family — a closed, symmetrical profile that resists bending equally about both axes and offers strong torsional performance for columns, bracing and truss members. Their flat faces make them easy to weld and bolt, and their clean lines are a popular choice for exposed architectural steel as well as everyday framing. Every section in this CSA G40 square family is available as a free CAD block, with outside dimensions, wall thickness and corner radii drawn from CISC 12.

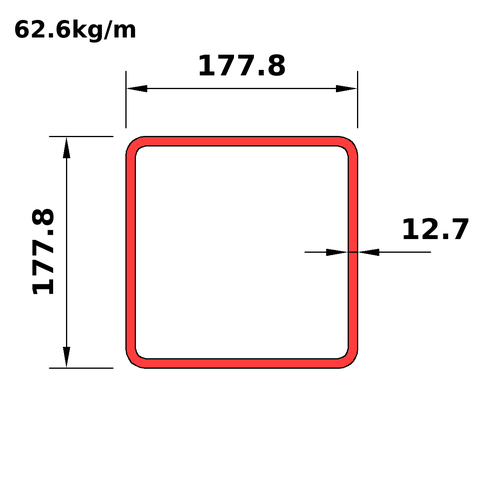

HS178x178x13
Select ZIP download

Select DWG download

Nearby Sections

Previous
HS178x178x16
This section
HS178x178x13
Next
HS178x178x9.5

Dimensions

PropertyValue
Ds_iHS7x7x0.500
D177.8
B177.8
T12.7
Tdes12.7
RI12.7
RO25.4
Mass62.6
Wt_i42.1
A_Th7970

Full sortable table: Dimensions table for this category

Section Properties

PropertyValue
Ds_iHS7x7x0.500
Mass62.6
Wt_i42.1
Prp
Avl
Shp9
Use2
BT10
DT10
Dn_m178
A_Th7970
Ix35.2
Sx396
Rx66.5
Zx484
Iy35.2
Sy396
Ry66.5
Zy484
J58800
Crt3230
C684
SA0.668
Dn_i7

Full sortable table: Properties table for this category
