HSS - CSA G40 Rectangular (HS) - HS203x102x13

Rectangular Hollow Structural Sections to CSA G40.21 are the Canadian-grade counterpart to ASTM A500 rectangular HSS, and are widely specified across Canada for columns, truss chords, canopy and mezzanine framing, and any application needing a torsionally stiff member with flat faces for easy connections. The rectangular profile is efficient where bending governs in one direction more than the other, letting the deeper dimension do the work. Every section in this CSA G40 rectangular family is available as a free CAD block, with full dimensional and property data from CISC 12.

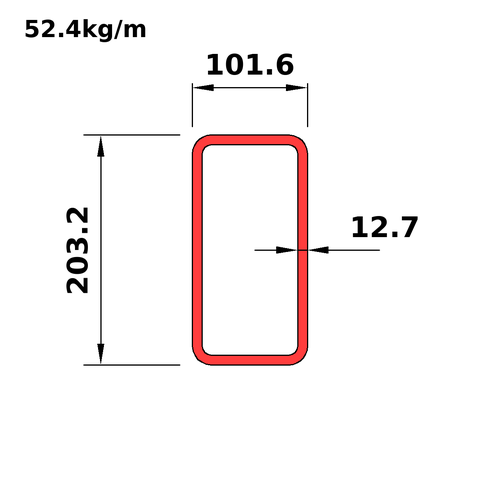

HS203x102x13
Select ZIP download

Select DWG download

Nearby Sections

Previous
HS203x152x4.8
This section
HS203x102x13
Next
HS203x102x9.5

Dimensions

PropertyValue
Ds_iHS8x4x0.500
D203.2
B101.6
T12.7
Tdes12.7
RI12.7
RO25.4
Mass52.4
Wt_i35.2
A_Th6680

Full sortable table: Dimensions table for this category

Section Properties

PropertyValue
Ds_iHS8x4x0.500
Mass52.4
Wt_i35.2
Prp*
Avl
Shp10
Use2
BT4
DT12
Dn_m203
A_Th6680
Ix31.3
Sx308
Rx68.4
Zx405
Iy10.2
Sy201
Ry39.1
Zy246
J26700
Crt3870
C422
SA0.566
Dn_i8

Full sortable table: Properties table for this category
