HSS - CSA G40 Rectangular (HS) - HS203x102x9.5

Rectangular Hollow Structural Sections to CSA G40.21 are the Canadian-grade counterpart to ASTM A500 rectangular HSS, and are widely specified across Canada for columns, truss chords, canopy and mezzanine framing, and any application needing a torsionally stiff member with flat faces for easy connections. The rectangular profile is efficient where bending governs in one direction more than the other, letting the deeper dimension do the work. Every section in this CSA G40 rectangular family is available as a free CAD block, with full dimensional and property data from CISC 12.

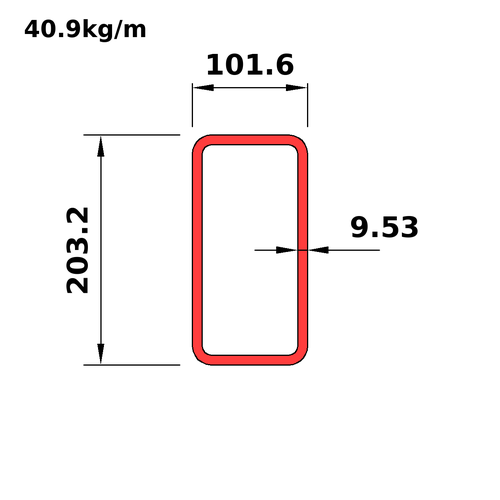

HS203x102x9.5
Select ZIP download

Select DWG download

Nearby Sections

Previous
HS203x102x13
This section
HS203x102x9.5
Next
HS203x102x7.9

Dimensions

PropertyValue
Ds_iHS8x4x0.375
D203.2
B101.6
T9.53
Tdes9.53
RI9.53
RO19.06
Mass40.9
Wt_i27.5
A_Th5210

Full sortable table: Dimensions table for this category

Section Properties

PropertyValue
Ds_iHS8x4x0.375
Mass40.9
Wt_i27.5
Prp
Avl
Shp10
Use2
BT6.66
DT17.32
Dn_m203
A_Th5210
Ix25.8
Sx254
Rx70.3
Zx326
Iy8.57
Sy169
Ry40.5
Zy199
J21700
Crt3150
C337
SA0.577
Dn_i8

Full sortable table: Properties table for this category
