HSS - CSA G40 Rectangular (HS) - HS203x152x13

Rectangular Hollow Structural Sections to CSA G40.21 are the Canadian-grade counterpart to ASTM A500 rectangular HSS, and are widely specified across Canada for columns, truss chords, canopy and mezzanine framing, and any application needing a torsionally stiff member with flat faces for easy connections. The rectangular profile is efficient where bending governs in one direction more than the other, letting the deeper dimension do the work. Every section in this CSA G40 rectangular family is available as a free CAD block, with full dimensional and property data from CISC 12.

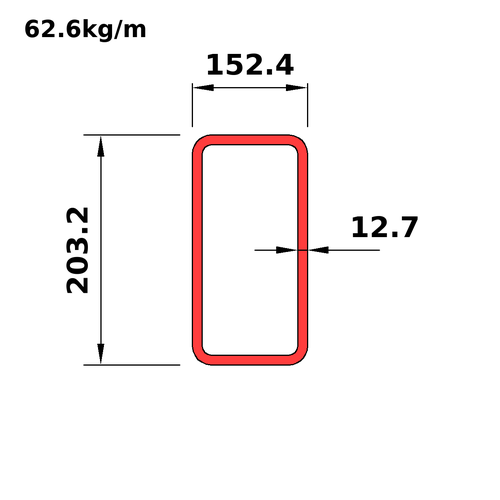

HS203x152x13
Select ZIP download

Select DWG download

Nearby Sections

Previous
HS203x152x16
This section
HS203x152x13
Next
HS203x152x9.5

Dimensions

PropertyValue
Ds_iHS8x6x0.500
D203.2
B152.4
T12.7
Tdes12.7
RI12.7
RO25.4
Mass62.6
Wt_i42.1
A_Th7970

Full sortable table: Dimensions table for this category

Section Properties

PropertyValue
Ds_iHS8x6x0.500
Mass62.6
Wt_i42.1
Prp
Avl
Shp10
Use2
BT8
DT12
Dn_m203
A_Th7970
Ix43
Sx423
Rx73.4
Zx528
Iy27.3
Sy359
Ry58.6
Zy432
J56000
Crt3870
C668
SA0.668
Dn_i8

Full sortable table: Properties table for this category
