HSS - CSA G40 Rectangular (HS) - HS203x152x16

Rectangular Hollow Structural Sections to CSA G40.21 are the Canadian-grade counterpart to ASTM A500 rectangular HSS, and are widely specified across Canada for columns, truss chords, canopy and mezzanine framing, and any application needing a torsionally stiff member with flat faces for easy connections. The rectangular profile is efficient where bending governs in one direction more than the other, letting the deeper dimension do the work. Every section in this CSA G40 rectangular family is available as a free CAD block, with full dimensional and property data from CISC 12.

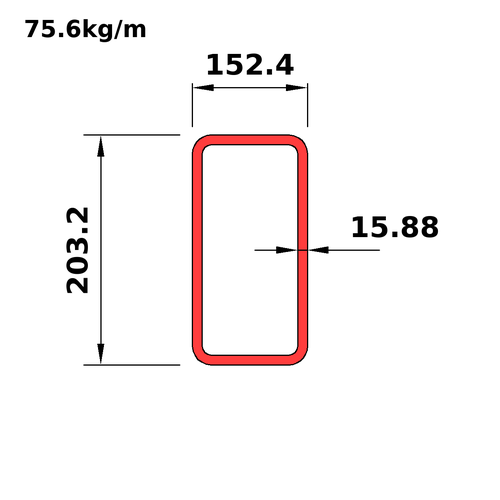

HS203x152x16
Select ZIP download

Select DWG download

Nearby Sections

Previous
HS254x152x4.8
This section
HS203x152x16
Next
HS203x152x13

Dimensions

PropertyValue
Ds_iHS8x6x0.625
D203.2
B152.4
T15.88
Tdes15.88
RI15.88
RO31.76
Mass75.6
Wt_i50.8
A_Th9640

Full sortable table: Dimensions table for this category

Section Properties

PropertyValue
Ds_iHS8x6x0.625
Mass75.6
Wt_i50.8
Prp*
Avl
Shp10
Use2
BT5.6
DT8.8
Dn_m203
A_Th9640
Ix49.6
Sx488
Rx71.7
Zx623
Iy31.4
Sy412
Ry57.1
Zy509
J65900
Crt4440
C797
SA0.657
Dn_i8

Full sortable table: Properties table for this category
