HSS - CSA G40 Square (HS) - HS203x203x4.8

Square Hollow Structural Sections to CSA G40.21 are the Canadian-grade square HSS family — a closed, symmetrical profile that resists bending equally about both axes and offers strong torsional performance for columns, bracing and truss members. Their flat faces make them easy to weld and bolt, and their clean lines are a popular choice for exposed architectural steel as well as everyday framing. Every section in this CSA G40 square family is available as a free CAD block, with outside dimensions, wall thickness and corner radii drawn from CISC 12.

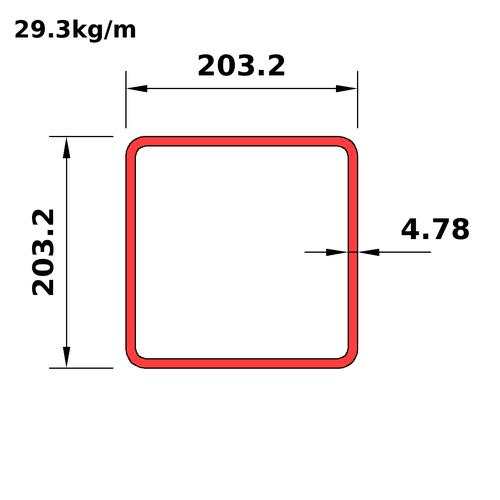

HS203x203x4.8
Select ZIP download

Select DWG download

Nearby Sections

Previous
HS203x203x6.4
This section
HS203x203x4.8
Next
HS178x178x16

Dimensions

PropertyValue
Ds_iHS8x8x0.188
D203.2
B203.2
T4.78
Tdes4.78
RI4.78
RO9.56
Mass29.3
Wt_i19.7
A_Th3730

Full sortable table: Dimensions table for this category

Section Properties

PropertyValue
Ds_iHS8x8x0.188
Mass29.3
Wt_i19.7
Prp
Avl
Shp9
Use2
BT38.51
DT38.51
Dn_m203
A_Th3730
Ix24.3
Sx239
Rx80.7
Zx276
Iy24.3
Sy239
Ry80.7
Zy276
J37800
Crt1760
C376
SA0.796
Dn_i8

Full sortable table: Properties table for this category
