HSS - CSA G40 Square (HS) - HS178x178x16

Square Hollow Structural Sections to CSA G40.21 are the Canadian-grade square HSS family — a closed, symmetrical profile that resists bending equally about both axes and offers strong torsional performance for columns, bracing and truss members. Their flat faces make them easy to weld and bolt, and their clean lines are a popular choice for exposed architectural steel as well as everyday framing. Every section in this CSA G40 square family is available as a free CAD block, with outside dimensions, wall thickness and corner radii drawn from CISC 12.

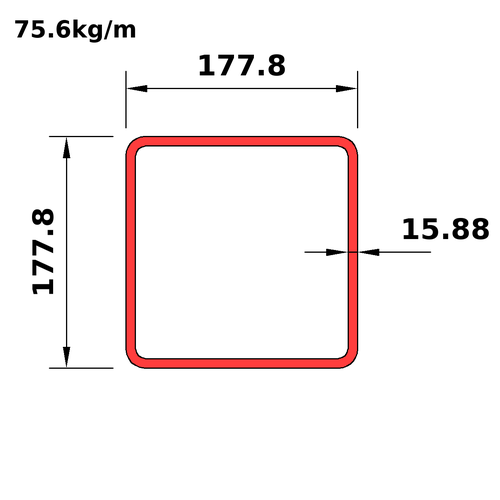

HS178x178x16
Select ZIP download

Select DWG download

Nearby Sections

Previous
HS203x203x4.8
This section
HS178x178x16
Next
HS178x178x13

Dimensions

PropertyValue
Ds_iHS7x7x0.625
D177.8
B177.8
T15.88
Tdes15.88
RI15.88
RO31.76
Mass75.6
Wt_i50.8
A_Th9640

Full sortable table: Dimensions table for this category

Section Properties

PropertyValue
Ds_iHS7x7x0.625
Mass75.6
Wt_i50.8
Prp*
Avl
Shp9
Use2
BT7.2
DT7.2
Dn_m178
A_Th9640
Ix40.6
Sx457
Rx64.9
Zx571
Iy40.6
Sy457
Ry64.9
Zy571
J69300
Crt3630
C817
SA0.657
Dn_i7

Full sortable table: Properties table for this category
