HSS - CSA G40 Rectangular (HS) - HS254x152x13

Rectangular Hollow Structural Sections to CSA G40.21 are the Canadian-grade counterpart to ASTM A500 rectangular HSS, and are widely specified across Canada for columns, truss chords, canopy and mezzanine framing, and any application needing a torsionally stiff member with flat faces for easy connections. The rectangular profile is efficient where bending governs in one direction more than the other, letting the deeper dimension do the work. Every section in this CSA G40 rectangular family is available as a free CAD block, with full dimensional and property data from CISC 12.

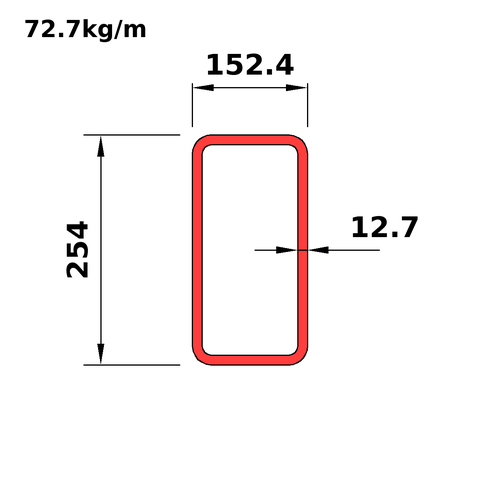

HS254x152x13
Select ZIP download

Select DWG download

Nearby Sections

Previous
HS254x152x16
This section
HS254x152x13
Next
HS254x152x9.5

Dimensions

PropertyValue
Ds_iHS10x6x0.500
D254
B152.4
T12.7
Tdes12.7
RI12.7
RO25.4
Mass72.7
Wt_i48.9
A_Th9260

Full sortable table: Dimensions table for this category

Section Properties

PropertyValue
Ds_iHS10x6x0.500
Mass72.7
Wt_i48.9
Prp
Avl
Shp10
Use2
BT8
DT16
Dn_m254
A_Th9260
Ix75.2
Sx592
Rx90.1
Zx747
Iy33.6
Sy442
Ry60.3
Zy522
J77700
Crt5160
C848
SA0.769
Dn_i10

Full sortable table: Properties table for this category
