HSS - CSA G40 Rectangular (HS) - HS254x152x16

Rectangular Hollow Structural Sections to CSA G40.21 are the Canadian-grade counterpart to ASTM A500 rectangular HSS, and are widely specified across Canada for columns, truss chords, canopy and mezzanine framing, and any application needing a torsionally stiff member with flat faces for easy connections. The rectangular profile is efficient where bending governs in one direction more than the other, letting the deeper dimension do the work. Every section in this CSA G40 rectangular family is available as a free CAD block, with full dimensional and property data from CISC 12.

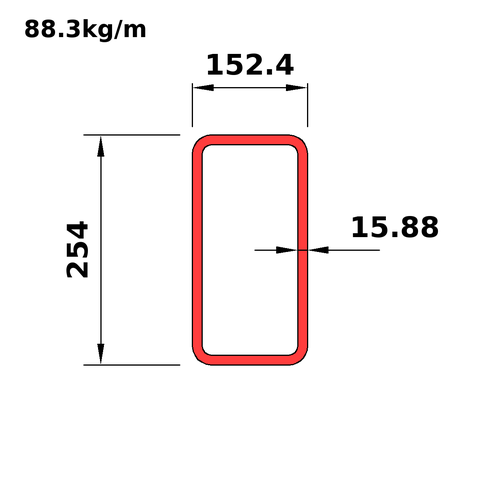

HS254x152x16
Select ZIP download

Select DWG download

Nearby Sections

Previous
HS254x203x6.4
This section
HS254x152x16
Next
HS254x152x13

Dimensions

PropertyValue
Ds_iHS10x6x0.625
D254
B152.4
T15.88
Tdes15.88
RI15.88
RO31.76
Mass88.3
Wt_i59.3
A_Th11200

Full sortable table: Dimensions table for this category

Section Properties

PropertyValue
Ds_iHS10x6x0.625
Mass88.3
Wt_i59.3
Prp*
Avl
Shp10
Use2
BT5.6
DT11.99
Dn_m254
A_Th11200
Ix87.8
Sx691
Rx88.3
Zx888
Iy38.9
Sy511
Ry58.8
Zy619
J91900
Crt6050
C1020
SA0.758
Dn_i10

Full sortable table: Properties table for this category
