HSS - CSA G40 Rectangular (HS) - HS254x152x6.4

Rectangular Hollow Structural Sections to CSA G40.21 are the Canadian-grade counterpart to ASTM A500 rectangular HSS, and are widely specified across Canada for columns, truss chords, canopy and mezzanine framing, and any application needing a torsionally stiff member with flat faces for easy connections. The rectangular profile is efficient where bending governs in one direction more than the other, letting the deeper dimension do the work. Every section in this CSA G40 rectangular family is available as a free CAD block, with full dimensional and property data from CISC 12.

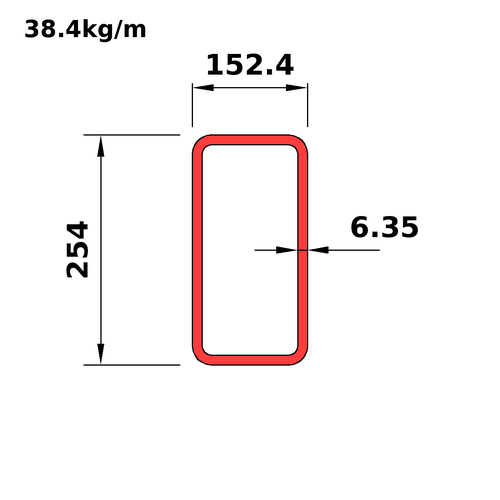

HS254x152x6.4
Select ZIP download

Select DWG download

Nearby Sections

Previous
HS254x152x7.9
This section
HS254x152x6.4
Next
HS254x152x4.8

Dimensions

PropertyValue
Ds_iHS10x6x0.250
D254
B152.4
T6.35
Tdes6.35
RI6.35
RO12.7
Mass38.4
Wt_i25.8
A_Th4900

Full sortable table: Dimensions table for this category

Section Properties

PropertyValue
Ds_iHS10x6x0.250
Mass38.4
Wt_i25.8
Prp
Avl
Shp10
Use2
BT20
DT36
Dn_m254
A_Th4900
Ix42.9
Sx338
Rx93.6
Zx411
Iy19.5
Sy256
Ry63.1
Zy290
J42900
Crt2900
C458
SA0.791
Dn_i10
