HSS - CSA G40 Rectangular (HS) - HS254x152x4.8

Rectangular Hollow Structural Sections to CSA G40.21 are the Canadian-grade counterpart to ASTM A500 rectangular HSS, and are widely specified across Canada for columns, truss chords, canopy and mezzanine framing, and any application needing a torsionally stiff member with flat faces for easy connections. The rectangular profile is efficient where bending governs in one direction more than the other, letting the deeper dimension do the work. Every section in this CSA G40 rectangular family is available as a free CAD block, with full dimensional and property data from CISC 12.

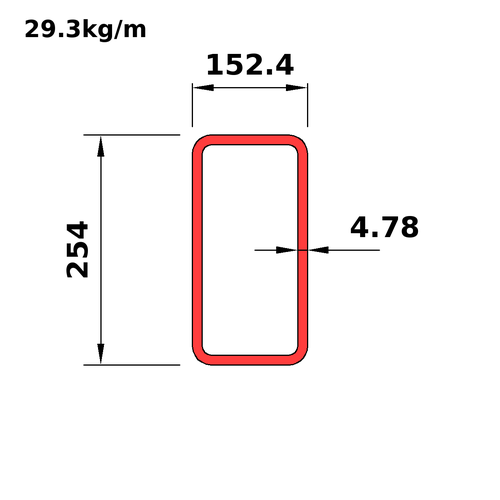

HS254x152x4.8
Select ZIP download

Select DWG download

Nearby Sections

Previous
HS254x152x6.4
This section
HS254x152x4.8
Next
HS203x152x16

Dimensions

PropertyValue
Ds_iHS10x6x0.188
D254
B152.4
T4.78
Tdes4.78
RI4.78
RO9.56
Mass29.3
Wt_i19.7
A_Th3730

Full sortable table: Dimensions table for this category

Section Properties

PropertyValue
Ds_iHS10x6x0.188
Mass29.3
Wt_i19.7
Prp
Avl
Shp10
Use2
BT27.88
DT49.14
Dn_m254
A_Th3730
Ix33.3
Sx262
Rx94.5
Zx317
Iy15.2
Sy200
Ry63.8
Zy224
J33000
Crt2250
C351
SA0.796
Dn_i10

Full sortable table: Properties table for this category
