HSS - CSA G40 Rectangular (HS) - HS305x152x16

Rectangular Hollow Structural Sections to CSA G40.21 are the Canadian-grade counterpart to ASTM A500 rectangular HSS, and are widely specified across Canada for columns, truss chords, canopy and mezzanine framing, and any application needing a torsionally stiff member with flat faces for easy connections. The rectangular profile is efficient where bending governs in one direction more than the other, letting the deeper dimension do the work. Every section in this CSA G40 rectangular family is available as a free CAD block, with full dimensional and property data from CISC 12.

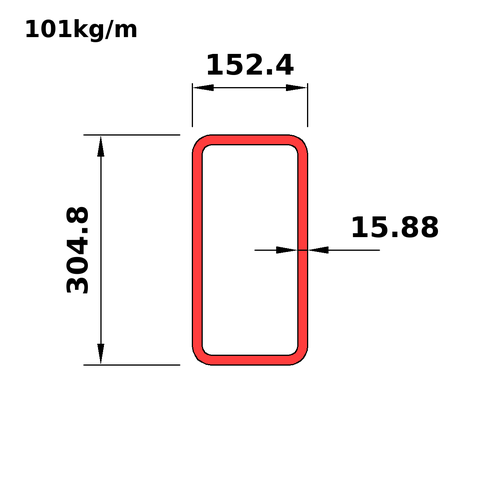

HS305x152x16
Select ZIP download

Select DWG download

Nearby Sections

Previous
HS305x203x6.4
This section
HS305x152x16
Next
HS305x152x13

Dimensions

PropertyValue
Ds_iHS12x6x0.625
D304.8
B152.4
T15.88
Tdes15.88
RI15.88
RO31.76
Mass101
Wt_i67.8
A_Th12900

Full sortable table: Dimensions table for this category

Section Properties

PropertyValue
Ds_iHS12x6x0.625
Mass101
Wt_i67.8
Prp*
Avl
Shp10
Use2
BT5.6
DT15.19
Dn_m305
A_Th12900
Ix141
Sx922
Rx105
Zx1190
Iy46.5
Sy610
Ry60.1
Zy729
J119000
Crt7660
C1240
SA0.86
Dn_i12
