HSS - CSA G40 Rectangular (HS) - HS305x152x13

Rectangular Hollow Structural Sections to CSA G40.21 are the Canadian-grade counterpart to ASTM A500 rectangular HSS, and are widely specified across Canada for columns, truss chords, canopy and mezzanine framing, and any application needing a torsionally stiff member with flat faces for easy connections. The rectangular profile is efficient where bending governs in one direction more than the other, letting the deeper dimension do the work. Every section in this CSA G40 rectangular family is available as a free CAD block, with full dimensional and property data from CISC 12.

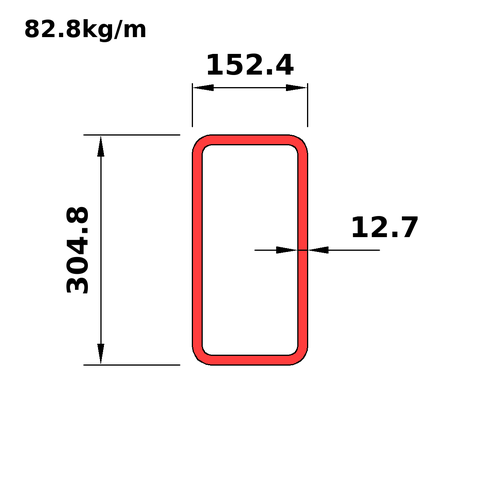

HS305x152x13
Select ZIP download

Select DWG download

Nearby Sections

Previous
HS305x152x16
This section
HS305x152x13
Next
HS305x152x9.5

Dimensions

PropertyValue
Ds_iHS12x6x0.500
D304.8
B152.4
T12.7
Tdes12.7
RI12.7
RO25.4
Mass82.8
Wt_i55.7
A_Th10600

Full sortable table: Dimensions table for this category

Section Properties

PropertyValue
Ds_iHS12x6x0.500
Mass82.8
Wt_i55.7
Prp
Avl
Shp10
Use2
BT8
DT20
Dn_m305
A_Th10600
Ix119
Sx784
Rx106
Zx999
Iy40
Sy524
Ry61.5
Zy613
J100000
Crt6450
C1030
SA0.871
Dn_i12
