HSS - CSA G40 Rectangular (HS) - HS305x152x9.5

Rectangular Hollow Structural Sections to CSA G40.21 are the Canadian-grade counterpart to ASTM A500 rectangular HSS, and are widely specified across Canada for columns, truss chords, canopy and mezzanine framing, and any application needing a torsionally stiff member with flat faces for easy connections. The rectangular profile is efficient where bending governs in one direction more than the other, letting the deeper dimension do the work. Every section in this CSA G40 rectangular family is available as a free CAD block, with full dimensional and property data from CISC 12.

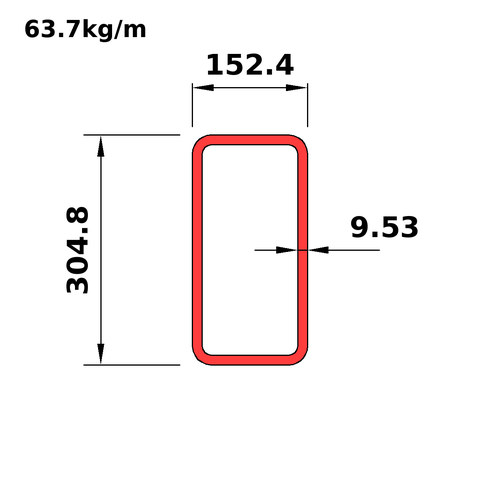

HS305x152x9.5
Select ZIP download

Select DWG download

Nearby Sections

Previous
HS305x152x13
This section
HS305x152x9.5
Next
HS305x152x7.9

Dimensions

PropertyValue
Ds_iHS12x6x0.375
D304.8
B152.4
T9.53
Tdes9.53
RI9.53
RO19.06
Mass63.7
Wt_i42.8
A_Th8120

Full sortable table: Dimensions table for this category

Section Properties

PropertyValue
Ds_iHS12x6x0.375
Mass63.7
Wt_i42.8
Prp
Avl
Shp10
Use2
BT11.99
DT27.98
Dn_m305
A_Th8120
Ix95.1
Sx624
Rx108
Zx783
Iy32.2
Sy422
Ry62.9
Zy482
J79000
Crt5080
C801
SA0.882
Dn_i12
