HSS - CSA G40 Square (HS) - HS356x356x13

Square Hollow Structural Sections to CSA G40.21 are the Canadian-grade square HSS family — a closed, symmetrical profile that resists bending equally about both axes and offers strong torsional performance for columns, bracing and truss members. Their flat faces make them easy to weld and bolt, and their clean lines are a popular choice for exposed architectural steel as well as everyday framing. Every section in this CSA G40 square family is available as a free CAD block, with outside dimensions, wall thickness and corner radii drawn from CISC 12.

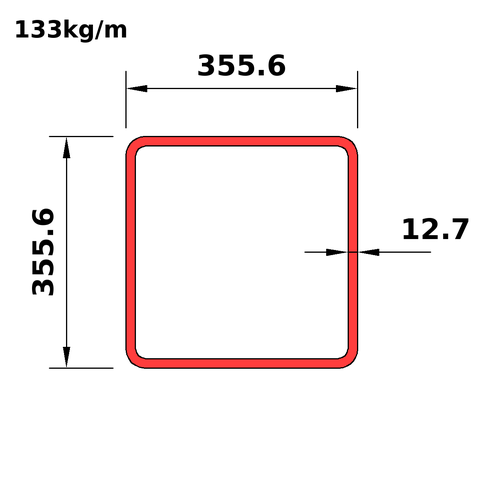

HS356x356x13
Select ZIP download

Select DWG download

Nearby Sections

Previous
HS356x356x16
This section
HS356x356x13
Next
HS356x356x9.5

Dimensions

PropertyValue
Ds_iHS14x14x0.500
D355.6
B355.6
T12.7
Tdes12.7
RI12.7
RO25.4
Mass133
Wt_i89.7
A_Th17000

Full sortable table: Dimensions table for this category

Section Properties

PropertyValue
Ds_iHS14x14x0.500
Mass133
Wt_i89.7
Prp
Avl+
Shp9
Use2
BT24
DT24
Dn_m356
A_Th17000
Ix329
Sx1850
Rx139
Zx2170
Iy329
Sy1850
Ry139
Zy2170
J522000
Crt7740
C2980
SA1.38
Dn_i14
