HSS - CSA G40 Square (HS) - HS356x356x9.5

Square Hollow Structural Sections to CSA G40.21 are the Canadian-grade square HSS family — a closed, symmetrical profile that resists bending equally about both axes and offers strong torsional performance for columns, bracing and truss members. Their flat faces make them easy to weld and bolt, and their clean lines are a popular choice for exposed architectural steel as well as everyday framing. Every section in this CSA G40 square family is available as a free CAD block, with outside dimensions, wall thickness and corner radii drawn from CISC 12.

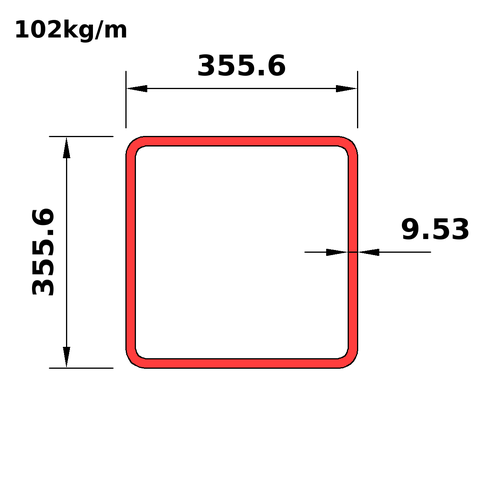

HS356x356x9.5
Select ZIP download

Select DWG download

Nearby Sections

Previous
HS356x356x13
This section
HS356x356x9.5
Next
HS356x356x7.9

Dimensions

PropertyValue
Ds_iHS14x14x0.375
D355.6
B355.6
T9.53
Tdes9.53
RI9.53
RO19.06
Mass102
Wt_i68.3
A_Th13000

Full sortable table: Dimensions table for this category

Section Properties

PropertyValue
Ds_iHS14x14x0.375
Mass102
Wt_i68.3
Prp
Avl+
Shp9
Use2
BT33.31
DT33.31
Dn_m356
A_Th13000
Ix256
Sx1440
Rx141
Zx1670
Iy256
Sy1440
Ry141
Zy1670
J401000
Crt6050
C2280
SA1.39
Dn_i14
