HSS - CSA G40 Square (HS) - HS356x356x7.9

Square Hollow Structural Sections to CSA G40.21 are the Canadian-grade square HSS family — a closed, symmetrical profile that resists bending equally about both axes and offers strong torsional performance for columns, bracing and truss members. Their flat faces make them easy to weld and bolt, and their clean lines are a popular choice for exposed architectural steel as well as everyday framing. Every section in this CSA G40 square family is available as a free CAD block, with outside dimensions, wall thickness and corner radii drawn from CISC 12.

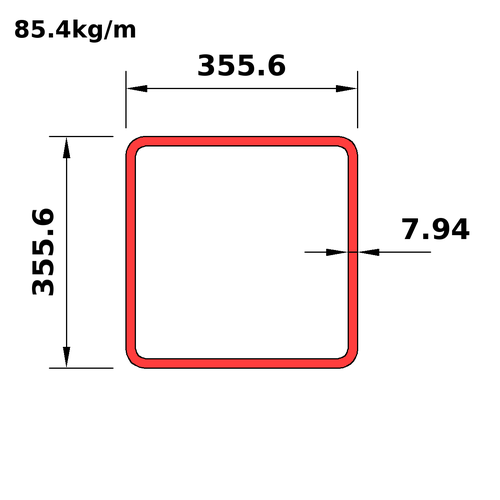

HS356x356x7.9
Select ZIP download

Select DWG download

Nearby Sections

Previous
HS356x356x9.5
This section
HS356x356x7.9
Next
HS305x305x19

Dimensions

PropertyValue
Ds_iHS14x14x0.313
D355.6
B355.6
T7.94
Tdes7.94
RI7.94
RO15.88
Mass85.4
Wt_i57.5
A_Th10900

Full sortable table: Dimensions table for this category

Section Properties

PropertyValue
Ds_iHS14x14x0.313
Mass85.4
Wt_i57.5
Prp
Avl+
Shp9
Use2
BT40.79
DT40.79
Dn_m356
A_Th10900
Ix218
Sx1220
Rx141
Zx1410
Iy218
Sy1220
Ry141
Zy1410
J338000
Crt5140
C1920
SA1.4
Dn_i14

Full sortable table: Properties table for this category
