HSS - CSA G40 Round (HS) - HS60x4.8

Round Hollow Structural Sections to CSA G40.21 are the Canadian-grade circular HSS family, used throughout Canada for columns, bracing, handrails, and any structure where equal strength in all directions and a clean circular profile are wanted. Their closed shape gives efficient resistance to buckling for a given weight of steel, and the round profile is a common architectural choice for exposed steelwork. The full CSA G40 round range is available here as free CAD blocks, with outside diameter and wall thickness data from CISC 12.

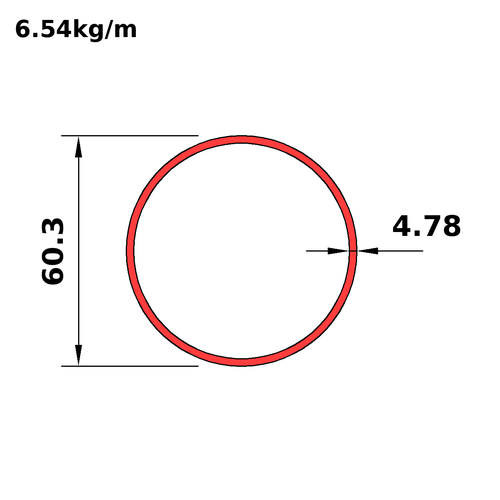

HS60x4.8
Select ZIP download

Select DWG download

Nearby Sections

Previous
HS60x6.4
This section
HS60x4.8
Next
HS60x3.2

Dimensions

PropertyValue
Ds_iHS2.375x0.188
D60.3
T4.78
Tdes4.78
Mass6.54
Wt_i4.4
A_Th834

Full sortable table: Dimensions table for this category

Section Properties

PropertyValue
Ds_iHS2.375x0.188
Mass6.54
Wt_i4.4
Prp
Avl
Shp11
Use2
B
BT
DT12.62
Dn_m60
A_Th834
Ix0.324
Sx10.7
Rx19.7
Zx14.8
Iy0.324
Sy10.7
Ry19.7
Zy14.8
J647
Crt419
C21.5
SA0.189
Dn_i2.375
