HSS - CSA G40 Round (HS) - HS60x6.4

Round Hollow Structural Sections to CSA G40.21 are the Canadian-grade circular HSS family, used throughout Canada for columns, bracing, handrails, and any structure where equal strength in all directions and a clean circular profile are wanted. Their closed shape gives efficient resistance to buckling for a given weight of steel, and the round profile is a common architectural choice for exposed steelwork. The full CSA G40 round range is available here as free CAD blocks, with outside diameter and wall thickness data from CISC 12.

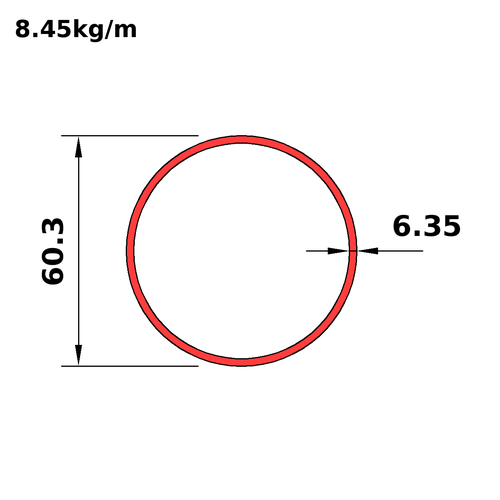

HS60x6.4
Select ZIP download

Select DWG download

Nearby Sections

Previous
HS64x3.2
This section
HS60x6.4
Next
HS60x4.8

Dimensions

PropertyValue
Ds_iHS2.375x0.250
D60.3
T6.35
Tdes6.35
Mass8.45
Wt_i5.68
A_Th1080

Full sortable table: Dimensions table for this category

Section Properties

PropertyValue
Ds_iHS2.375x0.250
Mass8.45
Wt_i5.68
Prp*
Avl+
Shp11
Use2
B
BT
DT9.5
Dn_m60
A_Th1080
Ix0.397
Sx13.2
Rx19.2
Zx18.6
Iy0.397
Sy13.2
Ry19.2
Zy18.6
J794
Crt543
C26.3
SA0.189
Dn_i2.375

Full sortable table: Properties table for this category
