HSS - CSA G40 Rectangular (HS) - HS76x51x7.9

Rectangular Hollow Structural Sections to CSA G40.21 are the Canadian-grade counterpart to ASTM A500 rectangular HSS, and are widely specified across Canada for columns, truss chords, canopy and mezzanine framing, and any application needing a torsionally stiff member with flat faces for easy connections. The rectangular profile is efficient where bending governs in one direction more than the other, letting the deeper dimension do the work. Every section in this CSA G40 rectangular family is available as a free CAD block, with full dimensional and property data from CISC 12.

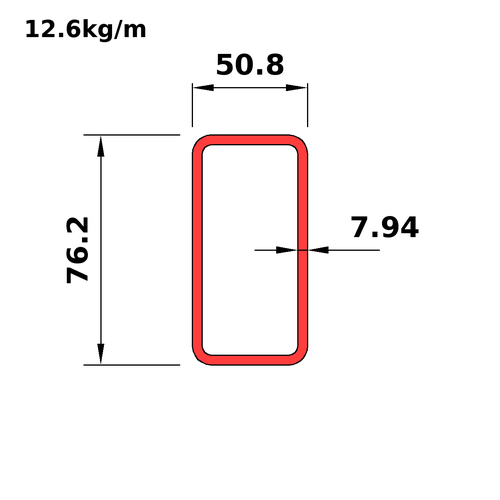

HS76x51x7.9
Select ZIP download

Select DWG download

Nearby Sections

Previous
HS89x64x4.8
This section
HS76x51x7.9
Next
HS76x51x6.4

Dimensions

PropertyValue
Ds_iHS3x2x0.313
D76.2
B50.8
T7.94
Tdes7.94
RI7.94
RO15.88
Mass12.6
Wt_i8.46
A_Th1600

Full sortable table: Dimensions table for this category

Section Properties

PropertyValue
Ds_iHS3x2x0.313
Mass12.6
Wt_i8.46
Prp*
Avl+
Shp10
Use2
BT2.4
DT5.6
Dn_m76
A_Th1600
Ix1.02
Sx26.7
Rx25.2
Zx36
Iy0.527
Sy20.7
Ry18.1
Zy26.9
J1240
Crt706
C44.5
SA0.227
Dn_i3
