HSS - CSA G40 Rectangular (HS) - HS89x64x4.8

Rectangular Hollow Structural Sections to CSA G40.21 are the Canadian-grade counterpart to ASTM A500 rectangular HSS, and are widely specified across Canada for columns, truss chords, canopy and mezzanine framing, and any application needing a torsionally stiff member with flat faces for easy connections. The rectangular profile is efficient where bending governs in one direction more than the other, letting the deeper dimension do the work. Every section in this CSA G40 rectangular family is available as a free CAD block, with full dimensional and property data from CISC 12.

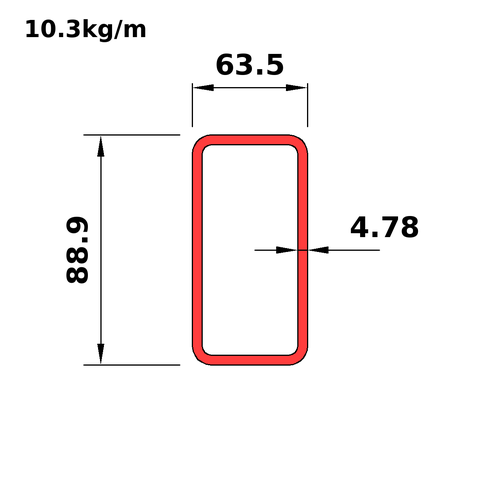

HS89x64x4.8
Select ZIP download

Select DWG download

Nearby Sections

Previous
HS89x64x6.4
This section
HS89x64x4.8
Next
HS76x51x7.9

Dimensions

PropertyValue
Ds_iHS3.5x2.5x0.188
D88.9
B63.5
T4.78
Tdes4.78
RI4.78
RO9.56
Mass10.3
Wt_i6.89
A_Th1310

Full sortable table: Dimensions table for this category

Section Properties

PropertyValue
Ds_iHS3.5x2.5x0.188
Mass10.3
Wt_i6.89
Prp
Avl
Shp10
Use2
BT9.28
DT14.6
Dn_m89
A_Th1310
Ix1.36
Sx30.6
Rx32.3
Zx38
Iy0.803
Sy25.3
Ry24.8
Zy30.1
J1680
Crt667
C46.8
SA0.288
Dn_i3.5

Full sortable table: Properties table for this category
