HSS - CSA G40 Square (HS) - HS89x89x4.8

Square Hollow Structural Sections to CSA G40.21 are the Canadian-grade square HSS family — a closed, symmetrical profile that resists bending equally about both axes and offers strong torsional performance for columns, bracing and truss members. Their flat faces make them easy to weld and bolt, and their clean lines are a popular choice for exposed architectural steel as well as everyday framing. Every section in this CSA G40 square family is available as a free CAD block, with outside dimensions, wall thickness and corner radii drawn from CISC 12.

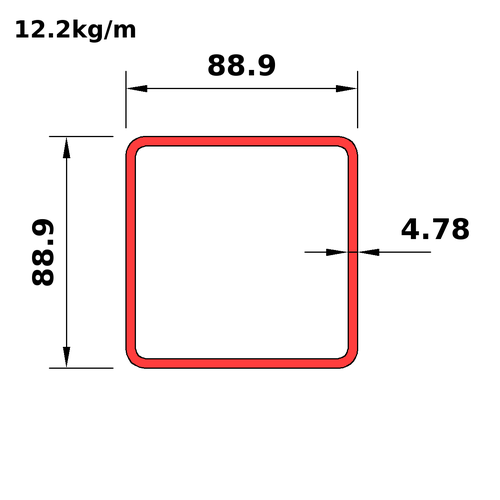

HS89x89x4.8
Select ZIP download

Select DWG download

Nearby Sections

Previous
HS89x89x6.4
This section
HS89x89x4.8
Next
HS76x76x9.5

Dimensions

PropertyValue
Ds_iHS3.5x3.5x0.188
D88.9
B88.9
T4.78
Tdes4.78
RI4.78
RO9.56
Mass12.2
Wt_i8.17
A_Th1550

Full sortable table: Dimensions table for this category

Section Properties

PropertyValue
Ds_iHS3.5x3.5x0.188
Mass12.2
Wt_i8.17
Prp
Avl
Shp9
Use2
BT14.6
DT14.6
Dn_m89
A_Th1550
Ix1.79
Sx40.3
Rx34
Zx48.2
Iy1.79
Sy40.3
Ry34
Zy48.2
J2920
Crt667
C67.2
SA0.339
Dn_i3.5
