HSS - CSA G40 Square (HS) - HS89x89x6.4

Square Hollow Structural Sections to CSA G40.21 are the Canadian-grade square HSS family — a closed, symmetrical profile that resists bending equally about both axes and offers strong torsional performance for columns, bracing and truss members. Their flat faces make them easy to weld and bolt, and their clean lines are a popular choice for exposed architectural steel as well as everyday framing. Every section in this CSA G40 square family is available as a free CAD block, with outside dimensions, wall thickness and corner radii drawn from CISC 12.

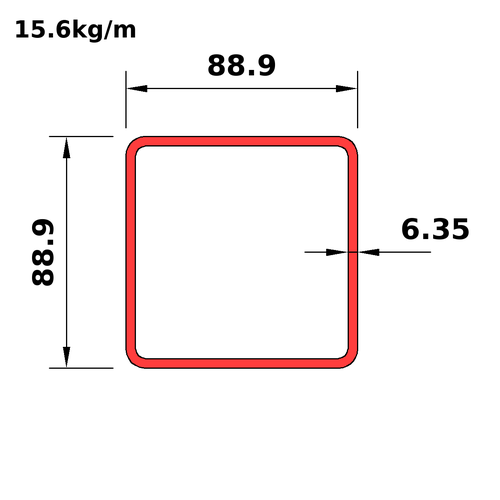

HS89x89x6.4
Select ZIP download

Select DWG download

Nearby Sections

Previous
HS89x89x7.9
This section
HS89x89x6.4
Next
HS89x89x4.8

Dimensions

PropertyValue
Ds_iHS3.5x3.5x0.250
D88.9
B88.9
T6.35
Tdes6.35
RI6.35
RO12.7
Mass15.6
Wt_i10.5
A_Th1990

Full sortable table: Dimensions table for this category

Section Properties

PropertyValue
Ds_iHS3.5x3.5x0.250
Mass15.6
Wt_i10.5
Prp
Avl
Shp9
Use2
BT10
DT10
Dn_m89
A_Th1990
Ix2.2
Sx49.5
Rx33.2
Zx60.5
Iy2.2
Sy49.5
Ry33.2
Zy60.5
J3670
Crt806
C85.6
SA0.334
Dn_i3.5

Full sortable table: Properties table for this category
