S Shapes - S130x15
S shapes are the original American Standard I-beam profile, characterised by a narrower flange and a steeper flange taper than modern wide-flange sections. They remain in the CISC tables for use in renovation and retrofit work matching existing structures, and occasionally in new construction where their proportions suit the application. Every S shape in the CISC 12 range is available here as a free CAD block, with full dimension and property data drawn from the CISC Structural Section Tables.
Nearby Sections

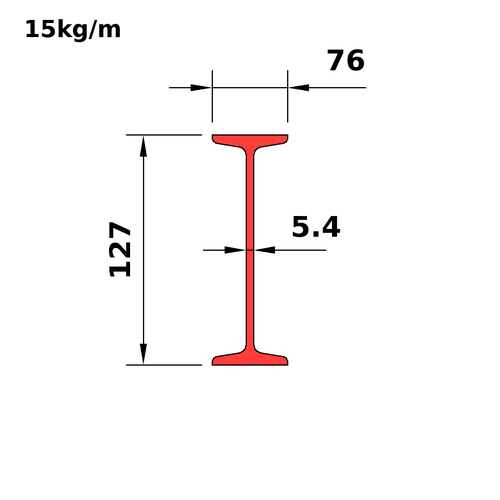

Dimensions
| Property | Value |
|---|---|
| Ds_i | S5x10 |
| D | 127 |
| B | 76 |
| T | 8.3 |
| W | 5.4 |
| K | 19 |
| K1 | 11 |
| T1 | 5.4 |
| T2 | 11.2 |
| Slp | 0.167 |
| Mass | 15 |
| Wt_i | 10 |
| A_Th | 1890 |
Full sortable table: Dimensions table for this category
Section Properties
| Property | Value |
|---|---|
| Ds_i | S5x10 |
| Mass | 15 |
| Wt_i | 10 |
| Prp | * |
| Avl | * |
| Shp | 4 |
| Grp | |
| Use | 3 |
| BT | 4.58 |
| HW | 20.44 |
| Dn_m | 130 |
| A_A6 | 1880 |
| A_Th | 1890 |
| Ix | 5.11 |
| Sx | 80.5 |
| Rx | 52 |
| Zx | 92.7 |
| Iy | 0.501 |
| Sy | 13.2 |
| Ry | 16.3 |
| Zy | 22.3 |
| J | 47 |
| Cw | 1.76 |
| SA | 0.547 |
| Dn_i | 5 |
Full sortable table: Properties table for this category
