HSS - ASTM A500 Square (HA) - HA178x178x9.5

Square Hollow Structural Sections to ASTM A500 combine the torsional stiffness of a closed tube with equal bending resistance about both axes, making them a go-to choice for columns, truss members, and any application where loads may come from more than one direction. Their flat, symmetrical faces simplify connection design and make them a favourite for exposed architectural steelwork as well as everyday structural framing. This family covers the full ASTM A500 square range as free CAD blocks, with outside dimensions, wall thickness and corner radii drawn from CISC 12.

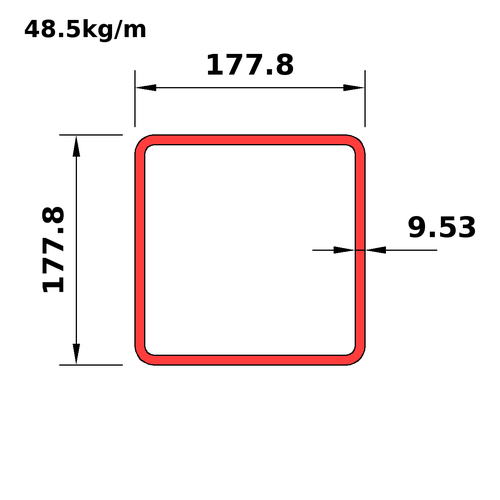

HA178x178x9.5
Select ZIP download

Select DWG download

Nearby Sections

Previous
HA178x178x13
This section
HA178x178x9.5
Next
HA178x178x7.9

Dimensions

PropertyValue
Ds_iHA7x7x0.375
D177.8
B177.8
T9.53
Tdes8.58
RI8.58
RO17.16
Mass48.5
Wt_i32.6
A_Th5620

Full sortable table: Dimensions table for this category

Section Properties

PropertyValue
Ds_iHA7x7x0.375
Mass48.5
Wt_i32.6
Prp
Avl
Shp12
Use2
BT16.72
DT16.72
Dn_m178
A_Th5620
Ix26.3
Sx296
Rx68.5
Zx352
Iy26.3
Sy296
Ry68.5
Zy352
J42600
Crt2460
C489
SA0.682
Dn_i7
